ISC Compact Rigging Pulley
ISC Compact Rigging Pulley
ISC Compact Rigging Pulley
Sold Out

    ISC Compact Rigging Pulley

    DESCRIPTION

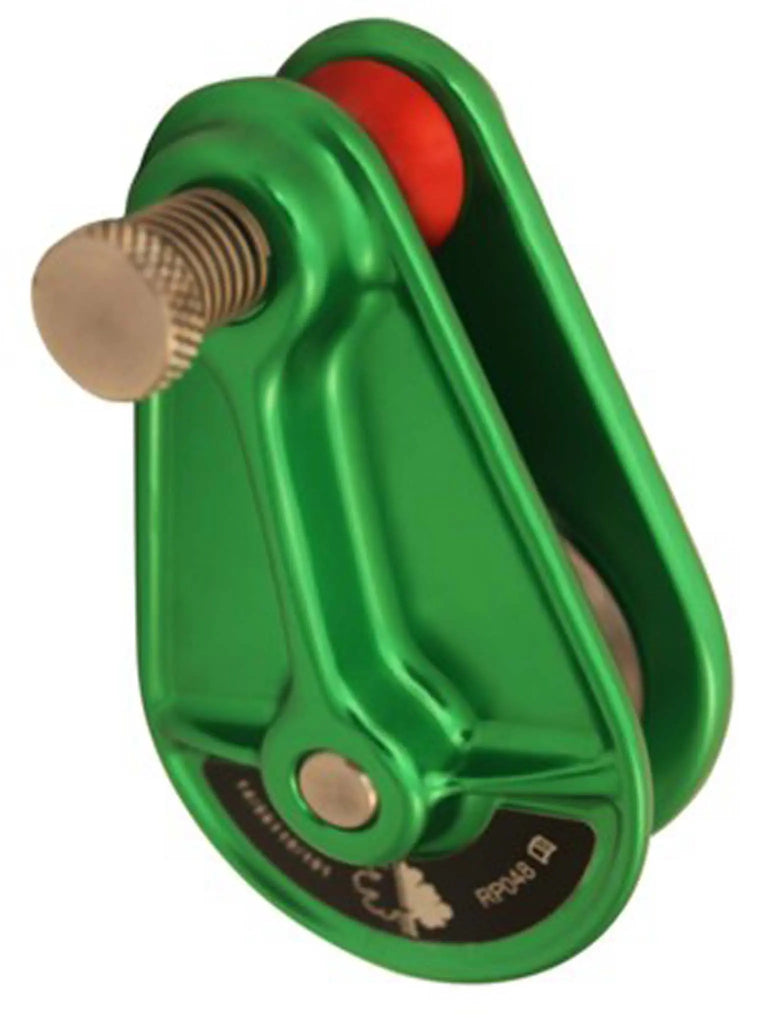

    At approximately half the size of the standard small rigging pulley and weighing in at only 490g (1lb), the new Compact Rigging Pulley offers a highly impressive strength to weight ratio with an 85kN (19000lbf) MBS and a WLL of 17kN (3800lbf).

    The Pulley plates are made from hot forged Aluminum and it is this manufacturing process which allows such a compact pulley to boast such great strength and dynamic load bearing capacity.

    Working Line (Grey Sheave):
    13mm (1/2") - 38kN (8500lbf)

    Topping Strop (Red Sheave):
    16mm (5/8") - 74kN (16650lbf)

    The Compact Rigging Pulley is fitted with a spring-lock closure mechanism.

    (MBS) Minimum Breaking Strength (kN) 85
    (MBS) Minimum Breaking Strength (lbf) 19000
    Pulley wheel colour Grey
    Anchor wheel colour Red
    Wheel material Aluminium
    Body finish Anodised
    Colour Green/grey
    Weight (grams) 490
    Weight (ounces) 16
    Height (mm) 125
    Height (inches) 5
    Width (mm) 76
    Width (inches) 3
