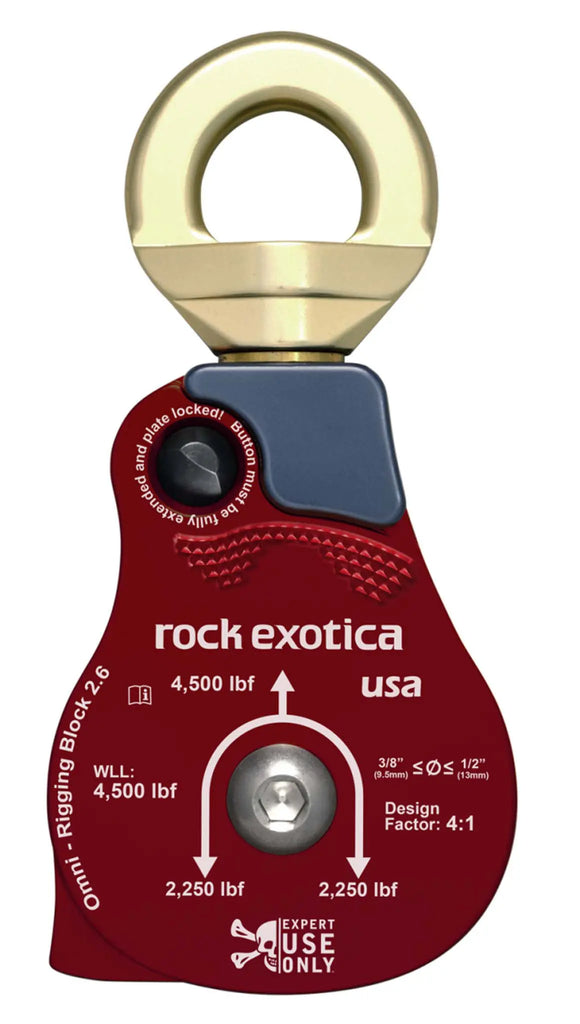

The Material Handling Omni 2.6" brings heavy duty rigging to the Omni family with a Working Load Limit (WLL) of 4500 lbf. In addition to the large 2.6" sheave, the MHP55 features a prussic minding sideplate, and push-button access to open the sideplate to install rope.
Part #: MHP55
Rope Size: 0.5" (13mm)
Weight: 1.9 lbs (850gm)
WLL: 4500 lbf
Certification: ASME B30 Compliant
The Omni-Block combines a swivel and pulley into one tool, and incorporates a unique sideplate that opens while the pulley is still attached to the anchor. Traditionally, a pulley is connected to a swivel by a carabiner. However, the Omni eliminates the need for the carabiner, reducing length and pieces of equipment in the rigging system. The short length of the Omni is important when used in high-angle, confined space or other space-sensitive rigging environments. The reduced weight of the Omni will make hauling your gear easier. Additionally the Omni sideplate can be opened without detaching from the carabiner. Traditional pulleys require removing from the carabiner to change the rope. With the Omni, the user is able to do this while the pulley is still secured.
